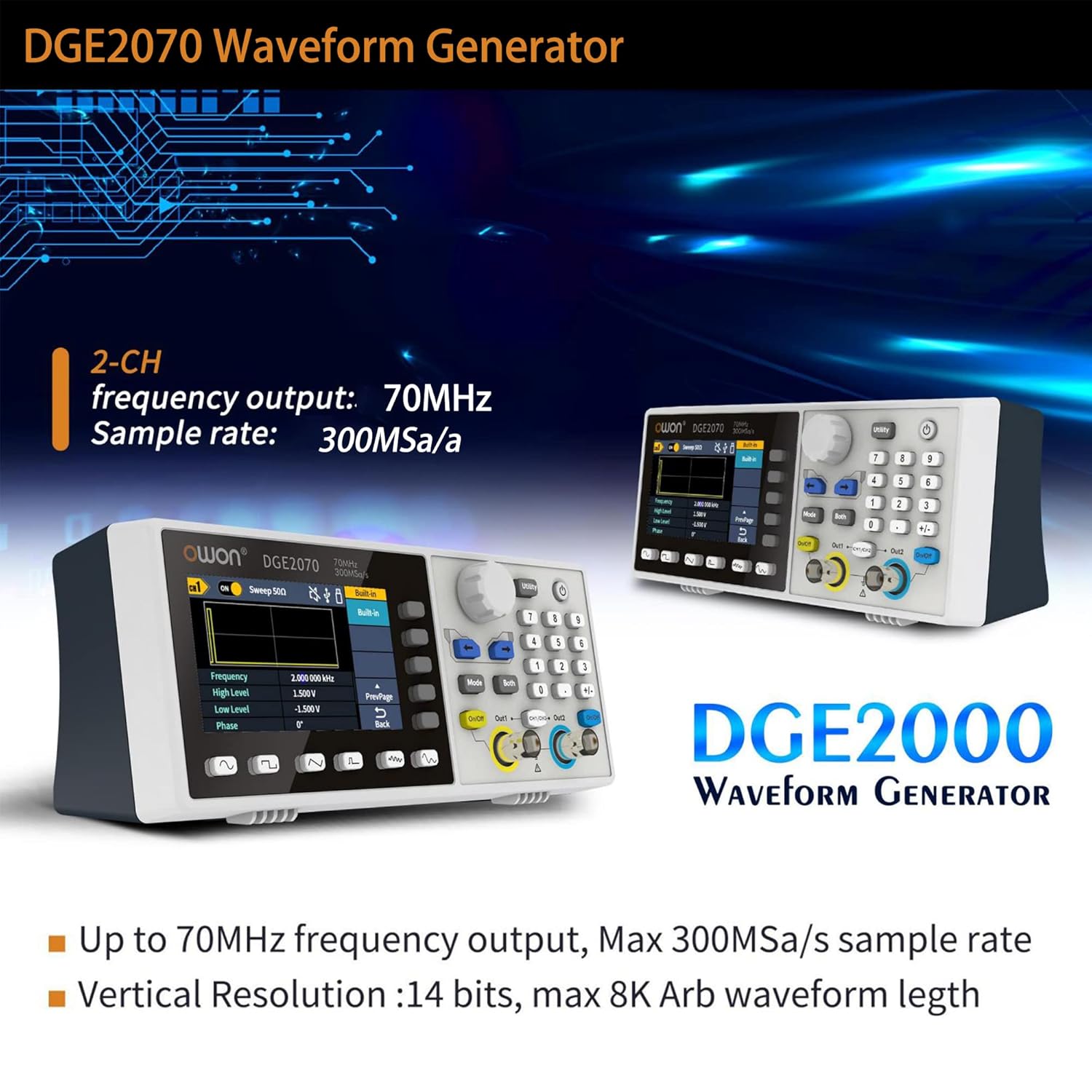

DGE2070 Arbitrary Waveform Generator Dual-Channel 70 MHz Generator 14 Bits Vertical Resolution with 3.6”LCD

DGE2070 Arbitrary Waveform Generator Dual-Channel 70 MHz Generator 14 Bits Vertical Resolution with 3.6”LCD

$139.99 USD
$139.99 USD
Sale Sold out

About This Item

  • Parameter：Dual channel waveform generator, 70MHz frequency output; Max 300MSa/s Sample rate，Vertical resolution 1μHz; 14 bits Vertical Resolution, 8K Arb waveform length
  • Function: Comprehensive waveform output: 5 basic waveforms and 150 built-in arbitrary waveforms; Comprehensive modulation functions: AM, FM, PM, FSK, Sweep and Burst
  • Utility function: Setting brightness of the screen; Screen Saver(If there is no operation within the set screen saver time, the screen enters the protection mode );Setting data separator; Setting load; Setting language; Beeper; USB Device Type

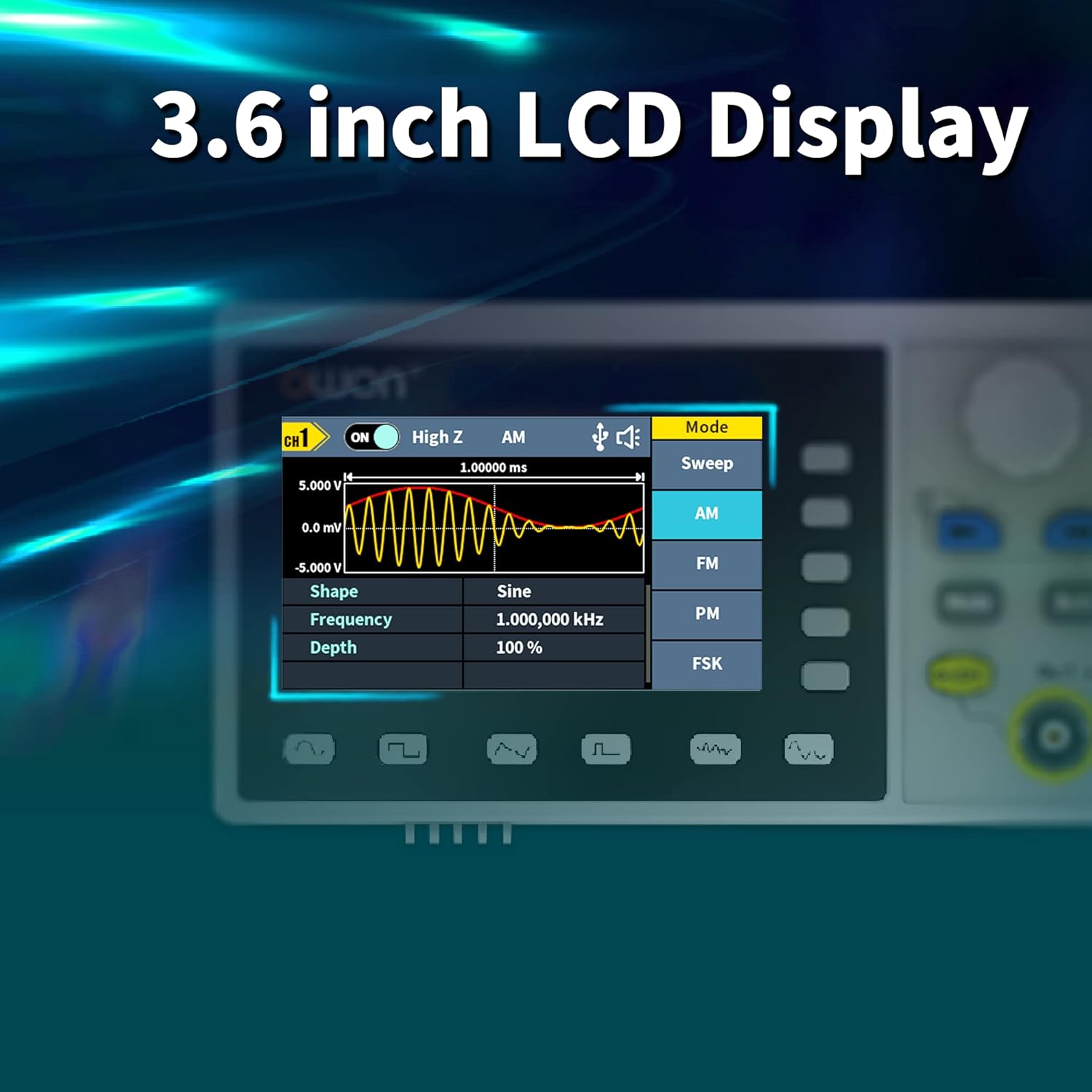

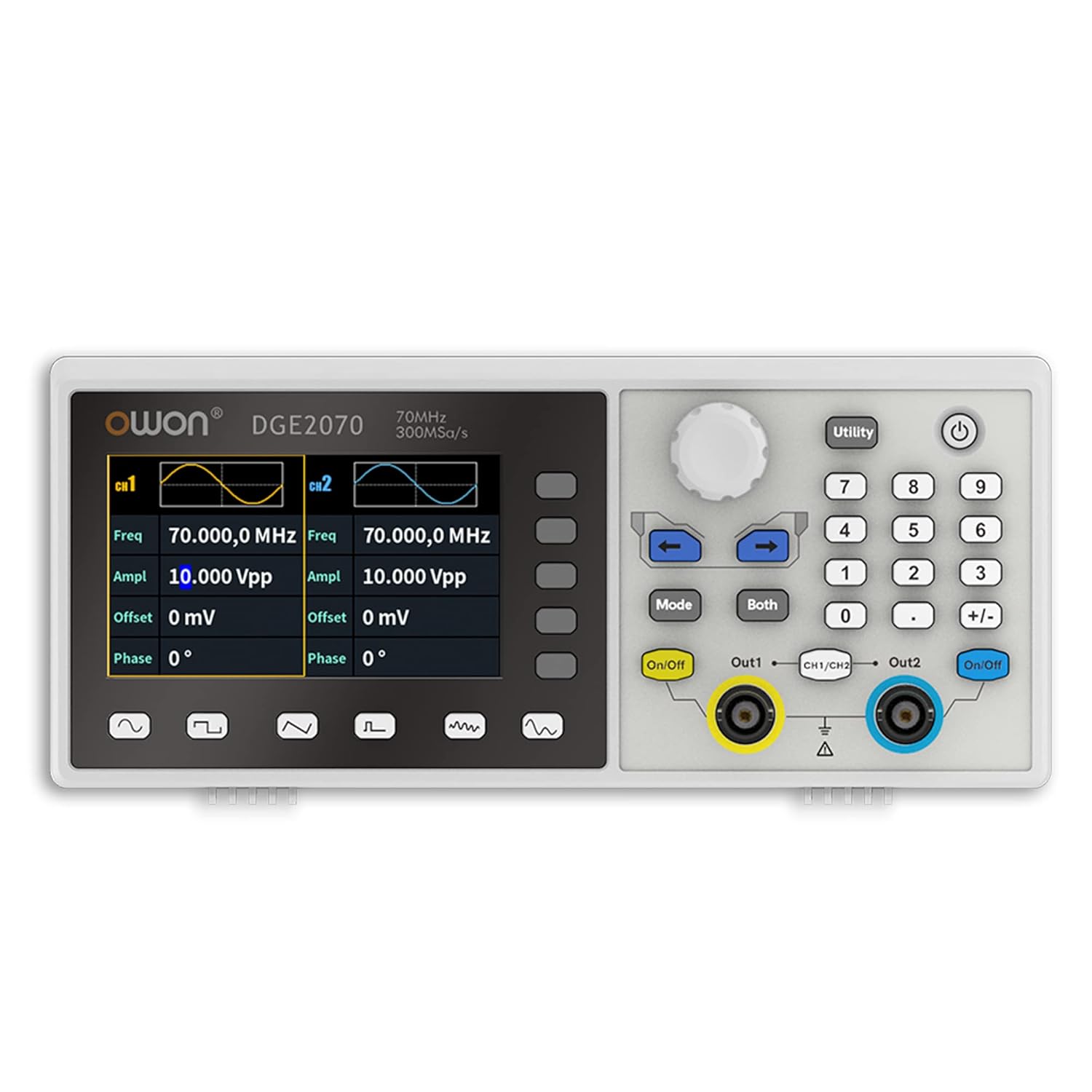

  • DGE2070 adopt 3.6 inch TFT color LCD display, each channel output waveform status and menu settings can be fully displayed on the screen. With convenient shortcut key, it makes man-machine interaction more convenientand effectively improve working efficiency

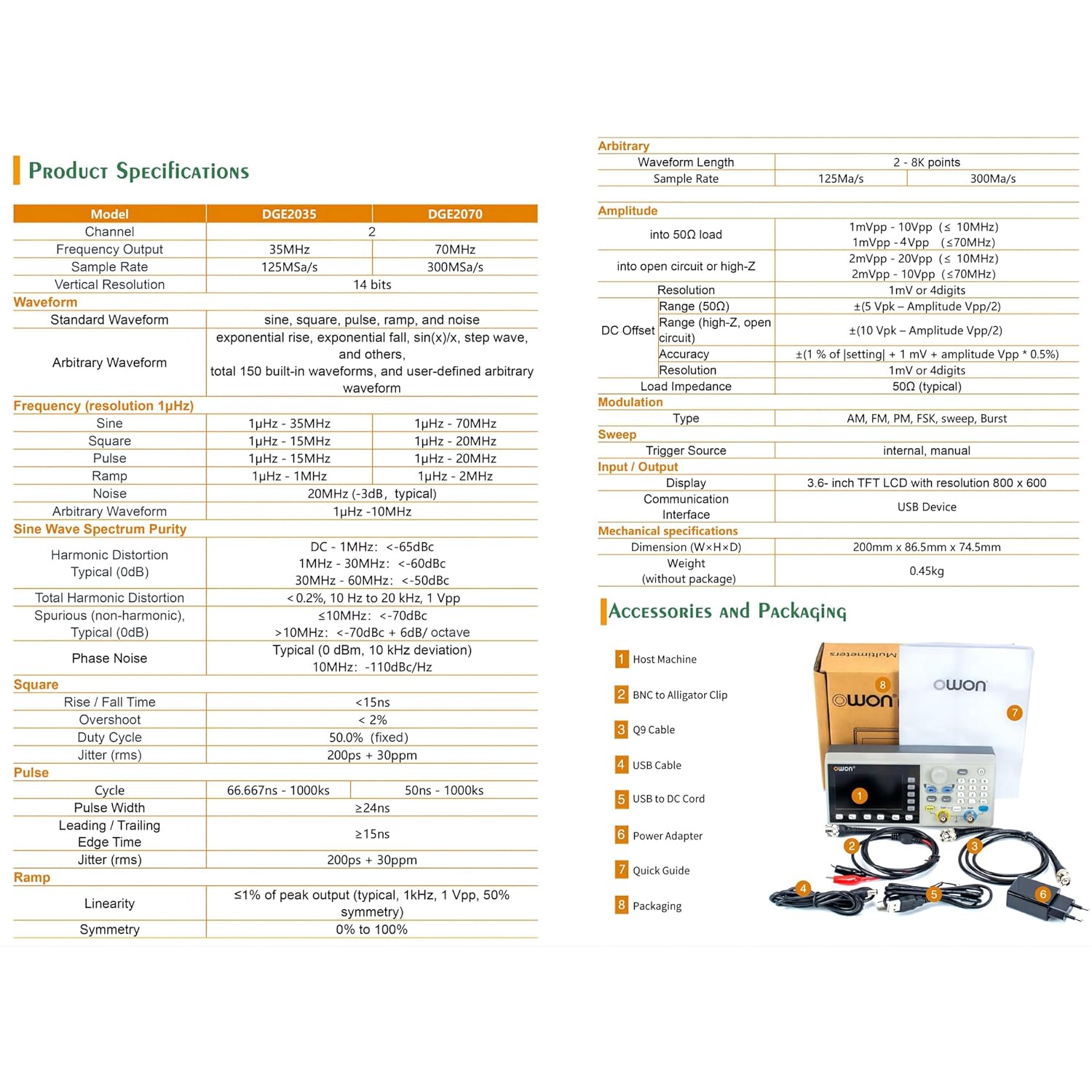

Waveform Generator Parameters

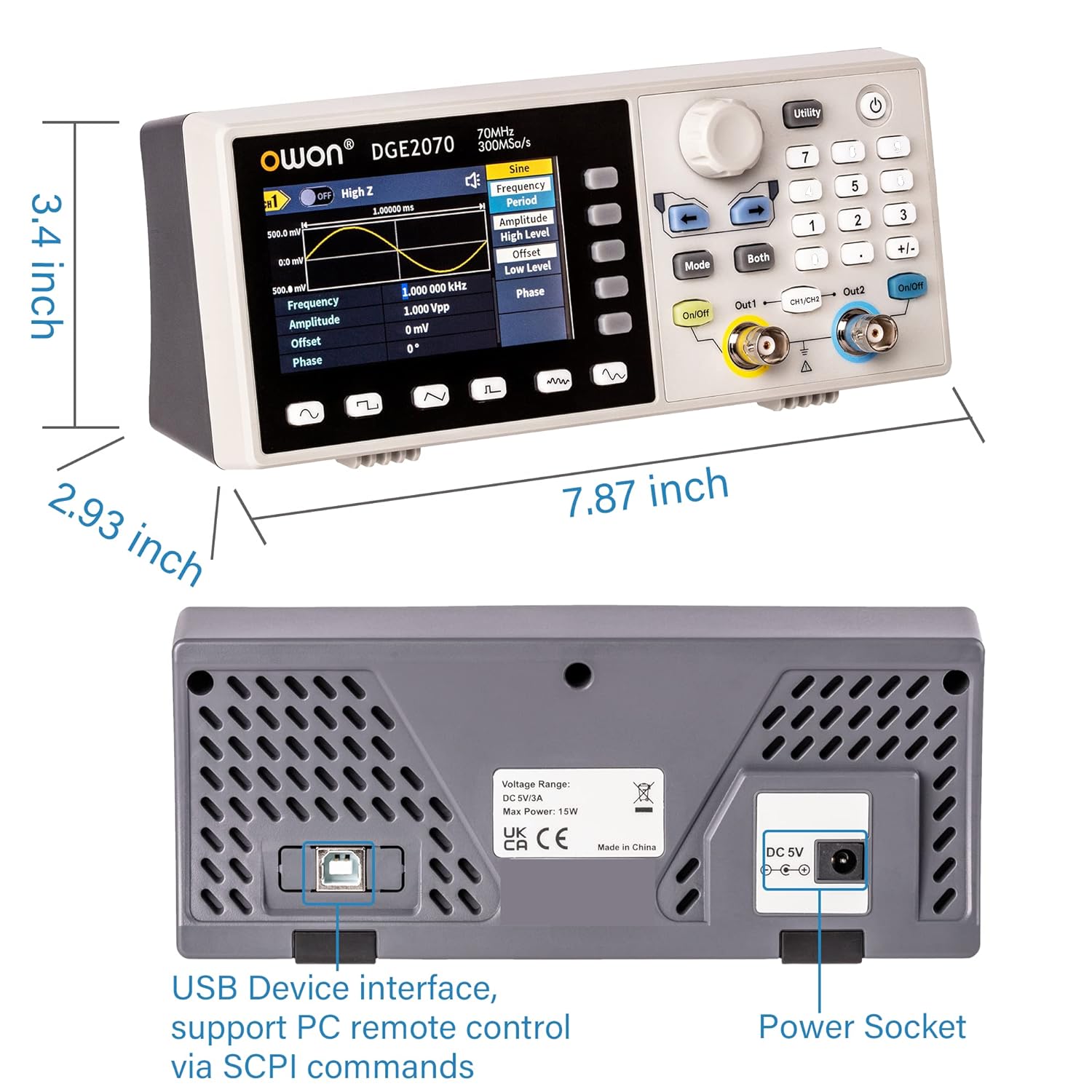

Model DGE2070
LCD 3.6 - inch
Bandwidth 70MHz
Sample Rate 300MSa/s
Channel 2
Standard Waveform sine, square, pulse, ramp, and noise
Arbitrary Waveform exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform
Amplitude Amplitude
into 50Ω load 1mVpp-20Vpp(≤10MHz) 1mVpp - 4Vpp (≤70MHz)
DC Offset Range (AD+DC) ±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω
DC offset Resolution 1mV or 4 digits
Load Impedance 50Ω (typical)
Modulation Type AM, FM, PM, FSK, sweep, Burst
Sweep Carrier Sine, rectangular wave, ramp wave, arbitrary wave(Except DC)
Burst Waveform Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC)

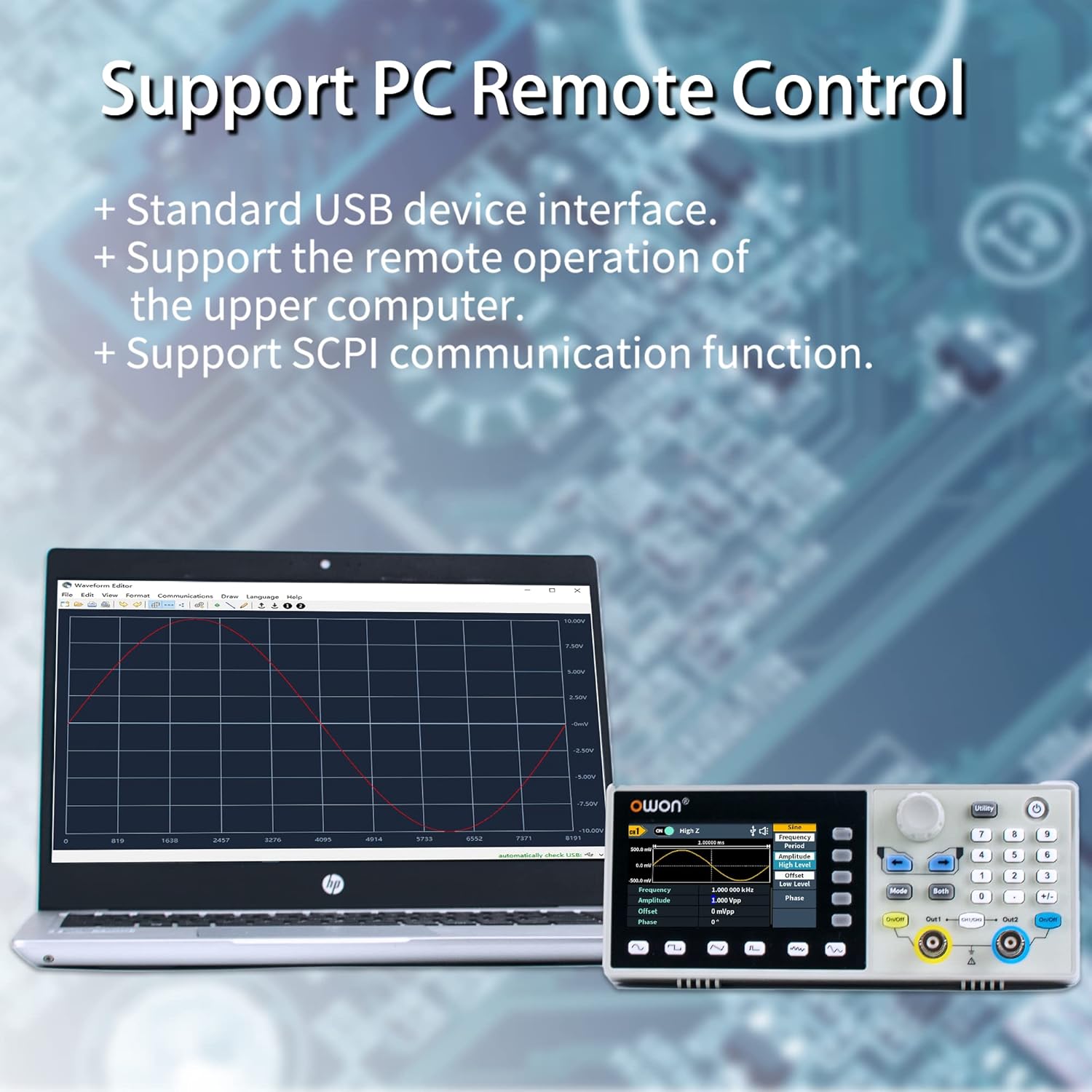

Communication Interface USB Device
